Basalt Fiber Tape
MinSeal 3620

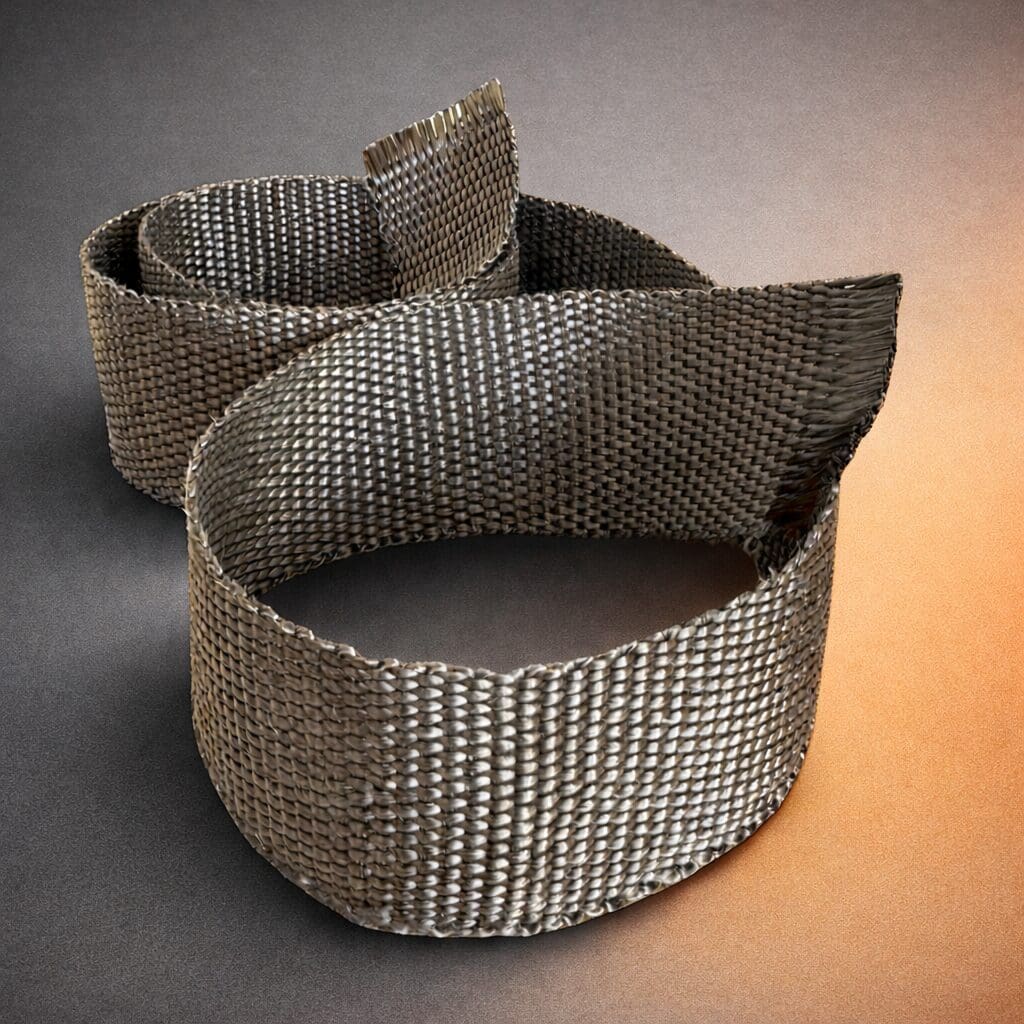

Basalt Fiber Tape-3620 is a woven tape manufactured from basalt fiber yarn which is a high-temperature insulation and reinforcement material made from continuous volcanic rock fibers, designed for demanding industrial and thermal applications. Commonly used as exhaust wrap, fireproofing tape, and composite reinforcement, basalt fiber tape delivers superior tensile strength, excellent chemical resistance, and continuous heat resistance often exceeding 1,000°F. Compared to fiberglass alternatives, Minseal basalt fiber tape offers improved durability, lower brittleness, and longer service life in extreme environments. Its non-combustible and corrosion-resistant properties make basalt fiber tape ideal for automotive, aerospace, marine, and construction projects where reliable thermal protection and structural reinforcement are essential.
Main Characteristics and Properties
-
- Heat, spark and flame resistant, temperature rating
1500ºF (800ºC) - High tensile strength, superior durability, water
resistance, impact resistance, no stretch or shrink - Excellent corrosion and higher chemical resistance, UV resistance
- Electrical non-conductive, high dielectric strength
- Naturally occurring material, environmentally friendly
- Typical chemical compositions:
SiO2 45–52, Al2O314 % or more, FeO 5–14%, MgO 5-12%, CaO 10%,
Alkalis(Na2O + K2O) 2-5%, TiO2 0.5–2.0%
- Heat, spark and flame resistant, temperature rating
Product Applications
Gasket, Insulation and protective wrapping for furnace, heating devices, hot pipes, steam tracer lines,
automotives etc., especially good option for exhaust insulation.
Product Sizes and Options
3620G Basalt Fiber Tape (Standard Woven Tape)
3620D Basalt Fiber Drop Warp Tape (Bolt Hole Tape)
DT3320
3620H Basalt Fiber Self Adhesive Tape (with PSA Back)
Available Sizes:
Thickness: 1/16″, 1/8″, 1/4″
Width: 1/2″ – 6″
Length: 100′
