Flexible Graphite Seal Material
MinGraph® Flexible graphite sheet, or flexible graphite foil, is manufactured from high purity compressed exfoliated/expanded mineral graphite (flake graphite). Standard industrial grade MinGraph® has a minimum 99% carbon content, which is the highest in the industry comparing to other brands such as Grafoil®. MinGraph® flexible graphite is also available in extra pure premium/nuclear grade, as well as special treated grade with enhanced oxidation and corrosion resistance. MinGraph® graphite gasket sheets and laminates are also supplied with chemical resistant metallic and non-metallic reinforcement.
Main Characteristics and Specs
All MinGraph® products are chemical inert, chemical resistant, heat resistant, flexible and conformable. It has the ideal properties as a gasket material for various fluid sealing applications, and the properties for many other special applications.
- High purity – low ash content, no hazardous contents, RoHS compliant
- Consistent density, great tensile strength
- Flexible and conformable nature
- Chemical resistant, compatible with most corrosive chemicals
- Great Heat and flame resistance
- Low creep relaxation and no aging
- Deferentially thermal conductive, electrical conductive
RoHS and REACH Compliance
MinGraph® Flexible Graphite products do not contain hazardous substances listed by RoHS and REACH:
In compliance with the European Union RoHS 2 Directive 2011/95/EC and the amendment of 2015/863/EU with respect to hazardous substances.
In compliance with the ECHA’s Candidate List of 174 SVHC substances, including the new substances added the the Candidate List as of June 2017.
MinGraph® flexible graphite can be used as
- Heat and chemical resistant, and thermal conductive gasket, seal, liner;
- Heat barrier, EMI (electromagnetic interference) shield, chemical shield;
- Heat dissipation liner, thermal management unit material;
- Dry sheet lubricant, stress sensing, vibration damping, spark plasma sintering(SPS), and other thermal electronic or electrochemical applications.
Equivalent: Grafoil, Sigraflex, flexible graphite

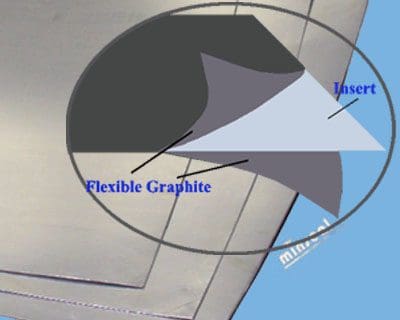

Flexible Graphite Seal Material (Graphite Sheet, Graphite Laminate) is made with high purity flexible graphite reinforced with metallic or non-metallic inserts. This is one of the most ideal gaskets or sealing materials in the market. Flexible graphite provides excellent sealing properties, while reinforcement insert provides extra strength for high pressure applications, and better handling strength. There are two basic insert bonding types: adhesive bond and mechanically bond (metal tang clinched). >> go to the page

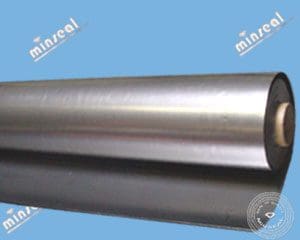

High purity premium grade, or nuclear grade flexible graphite foil is made from compressed high purity exfoliated mineral graphite, no binders or fillers. The material is treated in multiple special processes to achieve ultra-low levels of sulfur, chloride and other impurity contents. >> go to the page

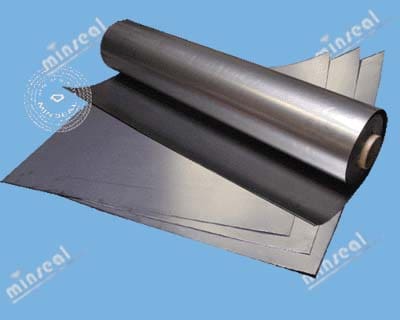

2010B Industrial Grade Graphite Foil - Homogeneous Flexible Graphite Foil in rolls or sheets are made from high purity mineral graphite, no fillers, no binders. 2010B is the most commonly used grade flexible graphite for various applications. Our 2010B grade material product has a higher purity of 99% carbon content, comparing to other brands' 95-98% graphite in the market. High carbon content gives the flexible graphite better chemical resistance, better thermal conductivity, and better sealability and better uniformity. >> go to the page

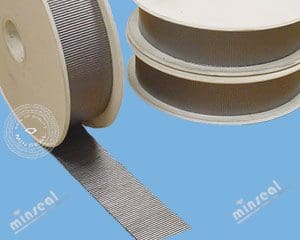

Slit and corrugated from high purity industrial grade Minseal flexible graphite, 99% graphite carbon, no filler, no binder material. >> go to the page

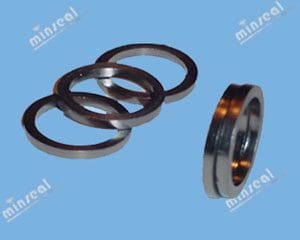

Flexible Graphite Die-formed ring is made from high purity homogeneous flexible graphite ribbon, no binders, no fillers. >> go to the page
GraficBraid® graphite packing is braided from specially treated flexible graphite yarn. This flexible and pure graphite packing yarn is made from exfoliated high purity crystalline mineral graphite (flake graphite). It maintains all characteristics of mineral graphite: heat resistant, chemical resistant, resilient, lubricant, pliable, conformable, and thermal conductive. This is one of the most ideal packing materials for pumps, valves and other various industrial sealing applications. >> go to the page
