Graphite Packing, General Service
GraficBraid 1000

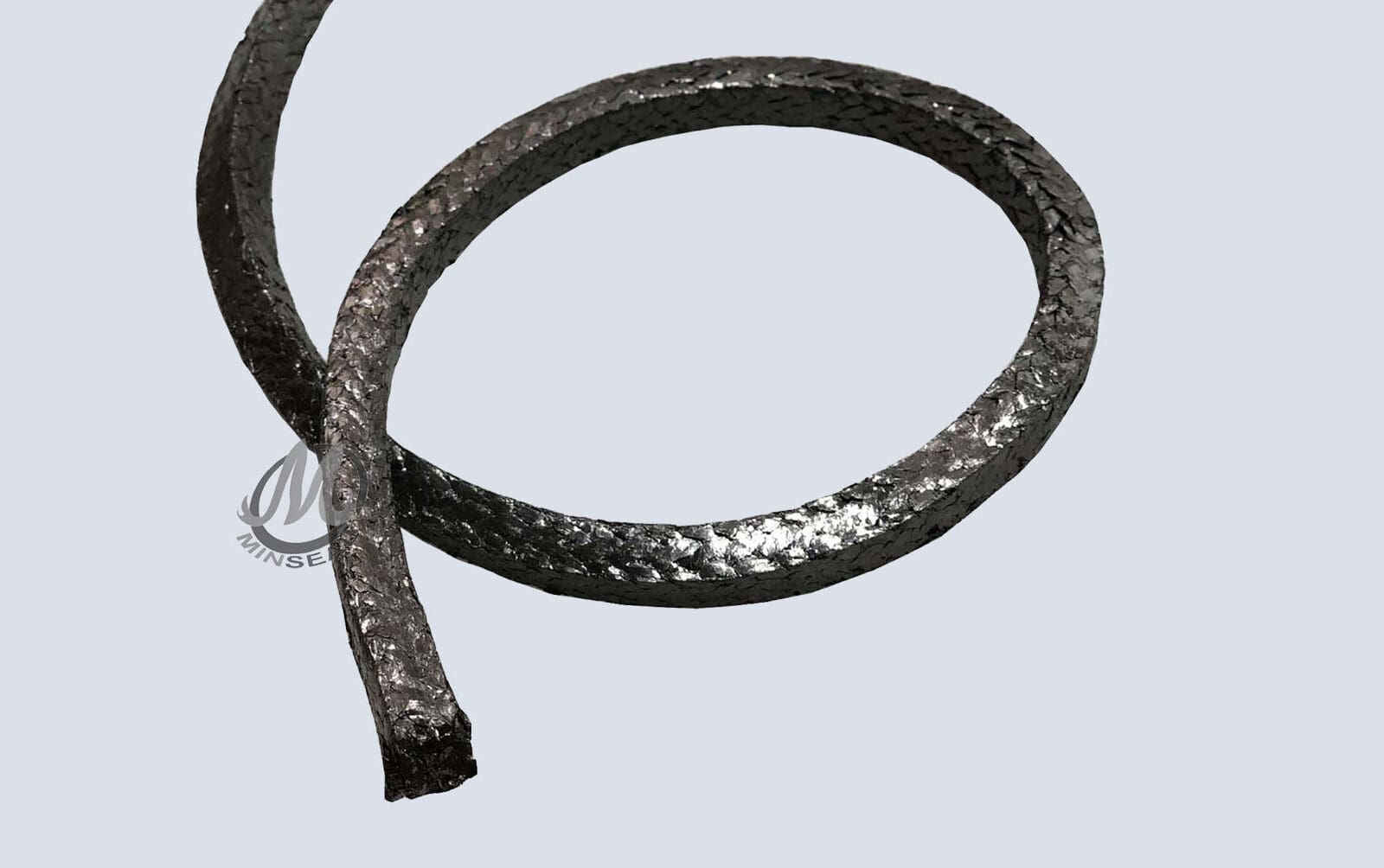

GraficBraid 1000 is the Flexible Graphite Packing general purpose version. The packing is braided from high purity flexible graphite yarn with high temperature inorganic carrier.
10 Comments on “Graphite Packing, General Service”
Leave a Reply
Main Characteristics and Properties
Construction: Interlock braid (except small sizes)
Working Temperature:
Up to 850°F if fully expose to air;
Up to 1800°F in steam or other mild oxidation medium;
Up to 5400°F in non-oxidizing media
pH: 0-14; Pressure: Up to 3000 psi; Shaft Speed: Up to 4000 FPM
Product Applications
Pumps and valves, in wide range of temperature, pressure and chemical
Product Sizes and Options
Cross Section: 1/8″ – 1.5″
QUOTE PER ROLL OF FELXIBLE GRAPHITE PACKAGING
We need to know what size and quantity you need. Please send your inquiry with that information to sales@minseal.com
What is the price per roll? And how many feet per roll for 1/2” square GraficBraid 1000?
Hi Tony, a 5 lb. spool of 1/2″ GraficBraid 1000 cost $140. There is ~41.5 feet in the 5 lb. 1/2″ spool. You can also purchase this product from Minseal directly at https://sealwiz.com/product/graphite-packing/
What is the price per roll? And how many feet per roll for 1/2” square GraficBraid 1000? I bought some from Amazon and it worked great for my application.
We are glad this product worked well for you.
What total feet in a 5lb spool of the 3/8 style 1200 packing? Would be nice to have a lbs to feet conversion chart.
1200 yield for 3/8″: 12 feet/lb. We should have posted the yield chart on the site. Good suggestion!
looking for graphite ,for fuel cll plate
Both Industrial Grade Graphite Foil (MinGraph 2010B) and Premium Grade Graphite Foil (MinGraph 2010A) can be used for your application. The primary difference between Premium Grade (2010A) and Industrial Grade (2010B) is the sulfur contamination level. The premium grade (MinGraph 2010A @ 300 ppM) has a lower level of average sulfur content than the industrial grade (MinGraph 2010B @ 1000 ppM).
