Graphite Laminate with SS316 Tang Insert

Style 2030E

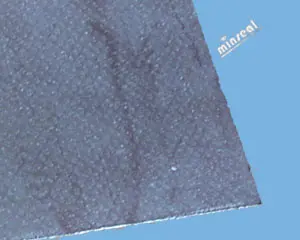

2030E is a graphite sheet laminate with reinforcement .004” thick perforated stainless steel type SS316 tang insert, mechanically bond. Made with high purity Minseal Flexible Graphite 2010-B Industrial Grade Foil.

Graftech Grafoil GHE; SGL Polycarbon BTCSS; Garlock 3125TC

Main Characteristics and Properties

Excellent Sealability that meets stringent emission regulations
High Temperature Resistant
Chemical Resistant
Blow-out Resistant
Non-aging, no creep relaxation
Meets most industrial fluid sealing service requirements (Recommended for 150 and 300 class service)

Stainless Steel Tang
Stainless Steel Tang

Chemical Compositions of Flexible Graphite
Carbon: 99% Min.; Ash: 0.8% Max; Leachable Chloride: 30ppm Max
The product does not contain Lead, Mercury, or any other hazardous materials (content level is undetectable)

Working Temperature Range:
Oxidizing Environment, such as air: -400º F to 950º F (-240ºC to 510ºC)
Mild Oxidizing Environment of most gasket applications: -400º F to 1500º F(-240ºC to 850º C)
Non-oxidizing Environment: Up to 1800º F, the limit of Stainless Steel Insert (Limit of
Graphite is 5400º F)

Product Applications

2030-E is an ideal sheet gasket material for most industrial fluid sealing applications. It is resistant to corrosive chemicals, high temperature, and high pressure. Can be used in refineries, chemical and petrochemical plants, paper mills, mines and other industrial fields. 2030-E gaskets may substitute spiral wound gaskets (Recommended for 150 and 300 class service).

Product Sizes and Options

Thickness: 1/32”, 1/16”, 1/8” Sheet Size: 39.4” x 39.4”(Meter Size), 60” x 60”


Cross-references: Graftech GHE; SGL Polycarbon BTCSS; Garlock 3125TC
