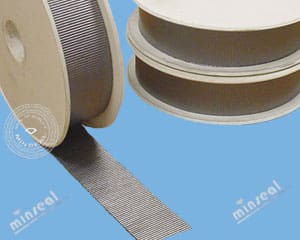

Crinkled Graphite Tape

Style 2020Z

Slit and corrugated from high purity industrial grade Minseal flexible graphite, 99% graphite carbon, no filler, no binder material.





Equivalent: Grafoil Tape, ribbon


Main Characteristics and Properties
    • Heat and fire resistant
    • Chemical resistant, compatible with most chemicals
    • Compressible, conformable, low creep relaxation
    • Thermal conductive, electrical conductive

Working Temperature Range:
Oxidizing Atmosphere, such as air: -400°F to 950°F(-240°C to 510°C)
Mild Oxidizing Atmosphere of most gasket applications: -400°F to 1500° F(-240°C to 850° C)
Non-Oxidizing Atmosphere: -400°F to 5400°F (-240°C to 3000°C)
Thermal Conductivity:
Parallel to Sheet Surface: 960 BTU-in/ft2.h.F (140 W/m.K)
Through Thickness: 36 BTU.in/ ft2.h.F (5W/m.K)

Product Applications

Crinkled Graphite Tape with PSA can be used as form-in-place gasket, valve stem packing, pump stuffing box packing, thread seal, or other irregular shaped seal/gasket.

Crinkled Graphite Tape(without PSA) is also the material for making die-formed graphite rings

Product Sizes and Options

Style 2020Z: No PSA

Style 2020ZH: With PSA (Adhesive) on one side

Special Treatments: Standard tapes are supplied without special treatments. Upon request, tapes can be treated with corrosion and oxidation inhibitor.

Standard Sizes: Thickness 015″; width 1/4″, 1/2″, 3/4″, 1″; length 50′
