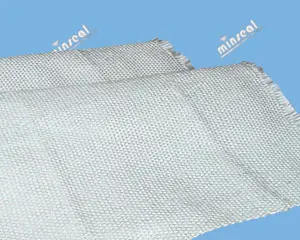

Fiberglass Fabric

MinGlas® 3310

Minglas® 3310 fiberglass fabric is made with texturized fiberglass yarn. The texturization provide enhanced insulation property. Minglas® 3310 cloth is an ideal material for various thermal and acoustic insulation, high temperature seal and protection.

Main Characteristics and Properties

Texturized yarn, plain weave structure
Heat, spark and flame resistant, temperature rating 1000°F
Chemical resistant
Low thermal conductivity
High tensile strength, no stretch or shrink
High dielectric strength

Product Applications

Welding blankets, safety blankets, curtains, expansion joints, protective and insulation covers or shields.

Product Sizes and Options

Style 3310G: standard industrial grade texturized fiberglass fabric

Style 3310W: with reinforcement stainless steel wire inserts

Commonly Used MinGlas 3310 Cloth Sizes
Item Code Weight Thickness Width Length Weave Reinforcement
3310G-2025 18 oz 1/32″ 40″ or 60″ 50 Yard Plain None
3310G-2906 29 oz 1/16″ 40″ or 60″ 50 Yard Plain None
3310G-5312 53 oz 1/8″ 40″ or 60″ 50 Yard Plain None
3310G-332 13 oz 1/64” 40″ or 60″ 50 Yard Satin None
3310W-2504 25 oz 040” 40″ or 60″ 50 Yard Plain SS Wire on Fill
3310W-6012 60 oz 1/8” 40″ or 60″ 50 Yard Plain SS Wire 2-way
