Graphite Coated Fiberglass Rope

MinGlas® 3357

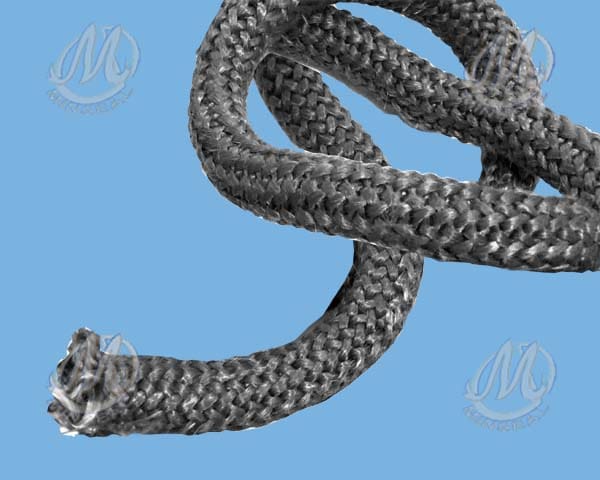

MinGlas® 3357 Graphite Coated Fiberglass Rope is made from high temperature texturized E-glass fiberglass yarn. The rope has a knitted structure, medium density, flexible and elastic. Graphite coating provides the rope with a dry lubrication. The rope is designed as gasket or seal for various industrial applications.

Tetraglas, Zetex

Main Characteristics and Properties

Main Characteristics and Specs:

  • Heat, spark and flame resistant
  • Chemical resistant, pH 2-12
  • Low thermal conductivity
  • High tensile strength, no aging or shrinking
  • High dielectric strength

Working Temperature:  Up to 1,000°F. (538°C)

Product Applications

High temperature insulation seals and gaskets for doors/gaps in fireplace, oven, furnace, boiler, processing tank, kettle, etc.

Product Sizes and Options

3357C Cross Knit Graphite Coated Rope
3357C Cross Knit

Standard Sizes: 1/4″ to 2″

Rope Structure Options:

  • Straight Knit (Standard)
  • Cross Knit (Optional)
  • Double Layer Straight Knit (Bigger Sizes)
