Ceramic Fiber Round Braided Rope

CeraTex 3150

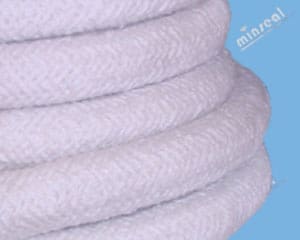

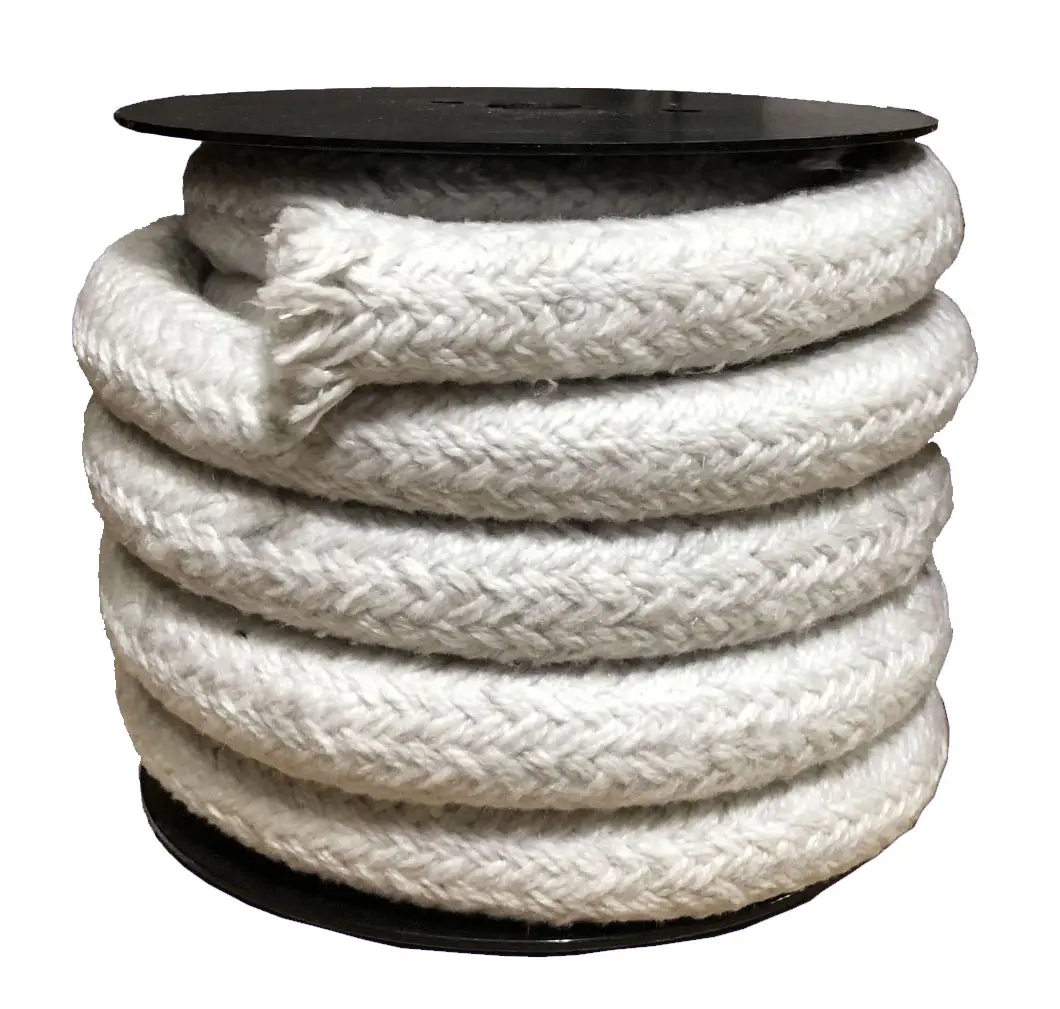

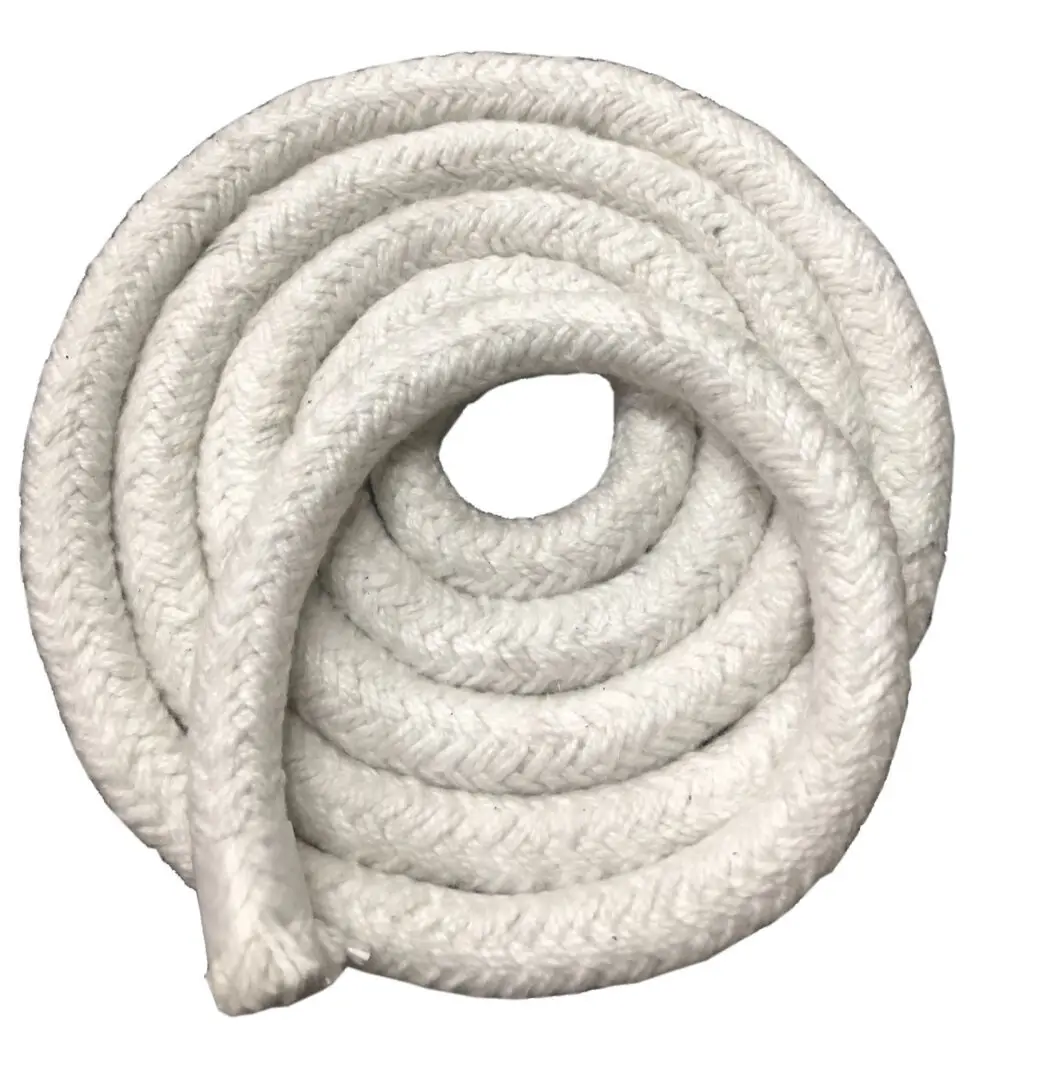

CeraTex® 3150 Ceramic Fiber Round Braided Rope is made with high temperature ceramic fiber yarn reinforced with fiberglass filament carrier,  round braid structure. The product is white and odorless, suitable for high temperature applications up to 2300°F.

Main Characteristics and Properties

Round braid structure, medium density with enhanced tensile and abrasion-resisting strength. It is compressible and resilient; has characteristics of lightweight,  low thermal conductivity, high temperature stability, low heat storage, thermal shock resistant, fire and flame proof, chemical resistant, compatible with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalies).

**This product contains organic binder material (for weaving purposes only) which will burn at relatively lower temperatures and generate smoke.  Product application properties are maintained during this normal de-organic heat-cleaning process.  Product color will be restored back to white after organic binder combustion.  Product should be heat treated first before use in a smoke-prohibitive environment.

Working Temperature :      1,800 °F. for Continuous Use, 2300 °F Maximum
Specific Heat (@2000°F):  0.27 Btu/lb °F
pH Range: 2-12

Product Applications

    • Seal, packing or gasket for doors/openings in ovens, stoves, furnaces, boilers;
    • Expansion joint packing;
    • Metal casting seal;
    • Seal or gasket in other high temperature applications.

Product Sizes and Options

Size: 1/4″  – 3″


Style 3150: Standard style

Style 3150W: with additional reinforcement wire insert
