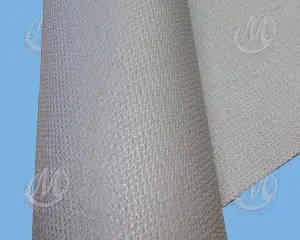

Silicone Coated Fiberglass Fabric

MinGlas® Plus 3315-332

Silicone Coated Fabric – Silicone Coated Fiberglass Cloth is made with high temperature E-glass fiberglass cloth coated with silicone on both sides. This fabric has a flexible texture and a high tensile strength. The coating provides enhanced insulation, protection and handling properties.

Main Characteristics and Properties

Thread count warp: 48/inch (18.9/cm) fill: 32/inch (12.6/cm)
Width 39.4”(1m), 59.1”(1.5m)
Weight 13 oz
Weave 4H Satin (Crowfoot)

Impregnated Liquid Silicone
Color Gray
thickness .017”
weight 17 oz
Temperature Rating: Base Fabric 1000°F, Coating: 500°F
Breaking Strength(lb/in) 230×140

Product Applications

High temperature insulation or protection blanket, pads, splash curtains etc.

Product Sizes and Options

Thickness: 017″

Width: 40″, 60″

Roll Length: 50 Yard

Color: Gray, Red
