CeraTex® Bio New

Bio-Soluble (Low Bio-Persistent) Fiber Products

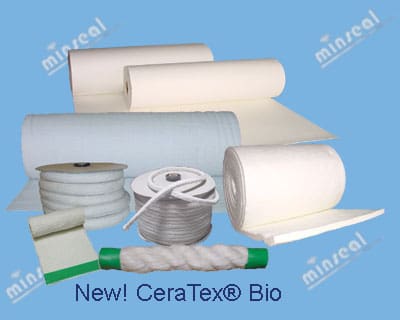

CeraTex® Bio insulation materials on display.

CeraTex® Bio products, which are manufactured from alkaline earth silicate (SiO₂, CaO, MgO) fibers, are specifically engineered to be bio-soluble (low bio-persistent) while also delivering exceptional high-temperature resistance of up to 2300°F maximum. As a result, they provide a safer and more compliant alternative to traditional refractory ceramic fibers without compromising thermal performance.

Furthermore, CeraTex® Bio fiber products are available in multiple configurations to meet a wide range of industrial sealing and insulation requirements. These variations include:

  • Tape

  • Rope (Twisted Braid, Square Braid, Round Braid)

  • Paper

  • Blanket

In addition, our Bio Soluble Ceramic Fiber (AES) is an advanced Alkaline Earth Silicate (AES) insulation material specifically engineered for high-temperature industrial applications that demand thermal efficiency, regulatory compliance, and long-term durability. Not only does AES fiber insulation deliver excellent thermal stability, but it also offers enhanced bio-soluble characteristics compared to traditional materials.

Moreover, this high-temperature insulation material provides low thermal conductivity and strong resistance to thermal shock. Consequently, it helps improve energy efficiency while maintaining structural integrity under extreme temperature fluctuations. At the same time, its lightweight composition allows for easier handling and installation. Therefore, it is especially well-suited for energy-intensive environments such as furnaces, kilns, fireproofing systems, and petrochemical processing equipment.

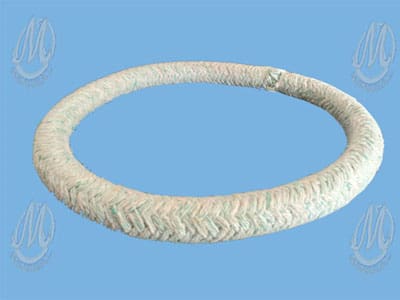

White braided circular rope on blue background.
CeraTex® Bio Rope – 3250

Main Characteristics and Properties

  • High temperature stable
  • Lightweight, excellent handling strength
  • Low thermal conductivity, low heat storage, thermal shock resistant
  • Chemical and corrosion resistant, compatible with commonly used acid and alkali
  • Excellent fire protection
  • Bio-soluble (low bio-persistent)

Chemical Composition

SiO2 55 – 65 %
CaO 23 – 35%
MgO 5 – 10%Chemical Composition
SiO2 55 – 65 %
CaO 23 – 35%
MgO 5 – 10%

Product Applications

  • Lining, insulation and repair for furnaces, kilns, ovens, boilers, steam reformers
  • Insulation for power plant, turbine, thermal reactor, generator, and nuclear applications
  • Expansion joint seal and insulation
  • Wrapping and insulation for high temperature pipe or metal casting
  • Fire protective insulation and lining
  • Other high temperature seal, gasket, insulation, filtration or protection
