Ceramic Fiber Paper with Graphite Surface

05/19/2025 | Mineral Seal Corporation |

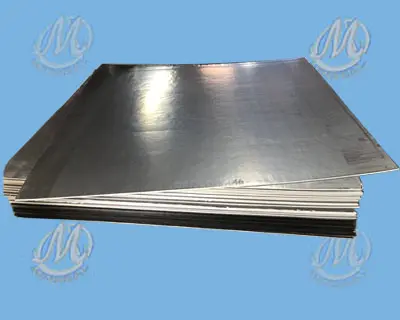

CeraTex® 3170G

CeraTex® Ceramic Fiber Paper with Graphite Surface is an alumino-silicate ceramic fiber-based non-woven fabric with a single-sided graphite surface.  CeraTex® is manufactured through a special paper-making process with high purity washed fibers, suitable for high temperature insulation up to 2300°F.

Main Characteristics and Properties
  • White color, lightweight, flexible, good handling strength and good uniformity
  • Resists temperature as high as 2300º F, ceramic fiber paper component of this product is fire resistant**
  • Low thermal conductivity, low heat storage, thermal shock resistant
  • Good dielectric strength
  • Excellent corrosion resistance (Resistant to most chemicals except hydrofluoric, phosphoric acids and concentrated alkalis)
  • Graphite surface (single side) provides superior heat resistance and non-stick properties, especially useful in applications which require an industrial-level trivet

** This product contains an organic binder which burns out at high temperatures.  Smoking/outgassing may occur during this burnout, but the product’s physical properties are maintained.

Product Properties

Density 12 lb./ft­³

Tensile Strength: 100 PSI

Bursting Strength: 25 PSI (0.17 MPa)

LOI: < 9%

Working Temperature:  1,800 °F. for Continuous Use, 2300 °F Maximum

Specific Heat (@2000°F): 0.27 Btu/lb °F

TemperatureBTU·in/hr·ft2(w/m·k)
@ 500ºF0.38(0.05)
@ 1000ºF0.61(0.09)
@ 1500ºF0.94(0.14)
@ 2000ºF1.40(0.20)
Product Applications
  • Insulation, lining and gasket for furnace, kiln, oven, stove, boiler and appliance;
  • Wrapping for high temperature pipe or metal casting;
  • Aerospace insulation, protection and shields;
  • Thermal insulation, gasket, seal, separator for ceramic and glass melting applications
  • Fire protection, spark and molten metal protection
  • High temperature electrical insulation
  • High temperature filtration
  • Seal, gasket or protection for other high temperature applications
Product Sizes and Options

Thickness: 1/32″, 1/16″, 1/8″, 1/4″

Width: 24″ and 48″
