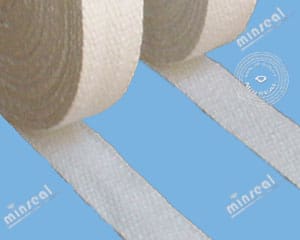

Ceramic Fiber Tape

CeraTex 3120

CeraTex® 3120 Ceramic Fiber Tape is a narrow woven fabric manufactured from high temperature alumino-silicate based ceramic fiber reinforced with high temperature fiberglass. The product is white and odorless, suitable for high temperature applications up to 2300°F.


Main Characteristics and Properties
    • Low thermal conductivity, low heat storage, high temperature stable, thermal shock resistant
    • Fire and flame proof
    • Chemical resistant, compatible with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalies)
    • Lightweight, woven texture with excellent handling strength

**This product contains organic binder material (for weaving purposes only) which will burn at relatively lower temperatures and generate smoke.  Product application properties are maintained during this normal de-organic heat-cleaning process.  Product color will be restored back to white after organic binder combustion.  Product should be heat treated first before use in a smoke-prohibitive environment.

Working Temperature :           1,800 °F. for Continuous Use, 2300 °F Maximum
Specific Heat (@2000°F):      0.27 Btu/lb °F

Product Applications

    • Safety and protective insulation covers, strip curtains, door seals
    • Insulation wrapping material for cable, wire, pipe, exhaust, etc.
    • Gaskets, tadpole gasket and other high temperature insulation seal

Product Sizes and Options

3120G Ceramic Fiber Tape, Standard Fiberglass Reinforced

3120W Ceramic Fiber Tape with Wire Insert

3120D Ceramic Fiber Drop Warp Tape (Bolt Hole Tape, Ladder Tape)

Also available: Heat treated, Adhesive(PSA) back

Thickness: 1/16″ , 1/8″

Width: 1/2″ to 6″

Roll Length: 100′
