Fiberglass Tape

MinGlas 3320

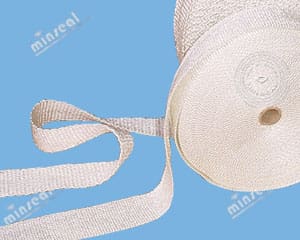

White rolled tape on blue background.
MinGlas 3320 fiberglass tape is a woven tape manufactured from texturized fiberglass yarn. The texturization provide enhanced insulation property. Minseal fiberglass tape is an ideal material for various thermal and acoustic insulation, high temperature seal and protection.
Main Characteristics and Properties
    • Heat, spark and flame resistant, temperature rating 1000°F
    • Chemical resistant
    • Low thermal conductivity
    • High tensile strength, no stretch or shrink
    • High dielectric strength
Product Applications

Insulation and protective wrapping for hot pipes, steam tracer lines, exhaust etc
Strip door curtains for ovens, furnaces
Gaskets, tadpole tapes, seals for high temperature applications



Product Sizes and Options

3320G Fiberglass Tape(Standard Woven Tape)

3320D Fiberglass Drop Warp Tape(Bolt Hole Tape)

3320H Fiberglass Self Adhesive Tape(with PSA Back)

Available Sizes:

Thickness: 1/16″, 1/8″, 1/4″; Width: 1/2″ – 6″; Length: 100′

Also available: PTFE(Teflon) coated, vermiculite coated, Adhesive(PSA) back

White medical gauze roll on blue background.
Fiberglass Drop Warp Tape
