Braiding Constructions of Compression Packing

Successful fluid sealing of valves and pumps cannot be accomplished without the appropriate sealing device. Whether using mechanical seals or compression packing, one must understand the specific needs of the application. While mechanical seals in general are considered the superior sealing device, they are much more expensive and much less versatile than compression packing. Compression packing is versatile due to the vast selection of materials used to make it and the various ways it is constructed. Materials such as vegetable fibers, man-made fibers, metals, graphite, and hybrids are all used to make packing. Construction types include braided, twisted, wrapped (rolled, folded), extruded, laminated, bulk, and die formed.

Construction types of compression packing each have variations within. This article will focus on braided packing. The most common braiding styles are square braid, round braid, twisted braid, braid-over-core, and lattice (interlock) braid.

Square Braid

The majority of braid types covered in this article are described by a geometric shape. One of the most common braids used to make compression packing is the square braid(plaited). Square braid is known to be soft and pliable, relatively loose, and can carry a large percentage of lubrication. This construction is commonly used in small size packing or ropes(3/8″ or smaller). Square braided compression packing can be formed from a variety of materials and can be woven as a homogeneous or composite product, where strands are passed over and under each other in the same direction and have a square or rectangular cross-section. Given its soft and loose characteristics, square braid will expand more radially than other braid types, which is especially effective when trying to seal worn, old equipment where voided space needs to be filled. Square braid packing is best used in applications of high speed rotary motion at relative low pressure.

Twisted

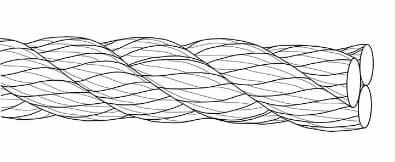

Another geometrically themed braid of compression packing is the twisted construction. As the name suggest, the twisted construction is made of yarn, roving, ribbons, or metallic strands twisted around each other or around a core. The key feature of twisted braid compression packing or rope is it’s “one size fits all”. One or more strands can be unraveled and removed in order to fit stuffing boxes of multiple sizes. Metallic fiber can be used in twisted braid in order to increase resistance to pressure or temperature but it is best suited for less intense applications. Twisted construction is usually soft and pliable.

Braid-Over-Core and Round Braid

Deviating from the geometric theme, the next compression braid packing to discuss is known as braid-over-core. This type of braid implements construction features of one or more braided jackets of yarns over a core, which can be twisted, braided or knitted yarns. The construction of braid-over-core allows for flexible densities (high or low) and cross-sectional shapes(round, square, rectangular). This type of packing is often found in round braided insulation rope seal, or valve packing.

***

Lattice Braid or Inter-Lock Braid

Pictured above is the braid pattern of the next type of compression packing, lattice braid. Lattice braid, also know as multi-braid, inter-lock braid, interbraid, diagonal braid, and cross braid is a braid pattern where stands are criss-crossed at 45 degree angles through a body of packing. This design creates a dense, yet flexible structure capable of withstanding fraying and unraveling, while also possessing improved lubrication retention. Lattice braid is known to be resilient due to its dense weave pattern, which works best on newer equipment, specifically reciprocating and centrifugal pumps, valves, agitators, and also expansion joints and static sealing.

Takeaway…

A main advantage compression packing has as a sealing device is its versatility. The multitude of materials it can be made from and the various structures it can be formed into allow packing to be used in most fluid sealing situations. Braid options, as the ones discussed in this article, make up only a small fraction of structure types yet each braid variation (square braid, round braid, twisted, braid-over-core, and lattice (inter-lock) braid can address a very specific application optimally.
